Water Source Flow Analysis Worksheet

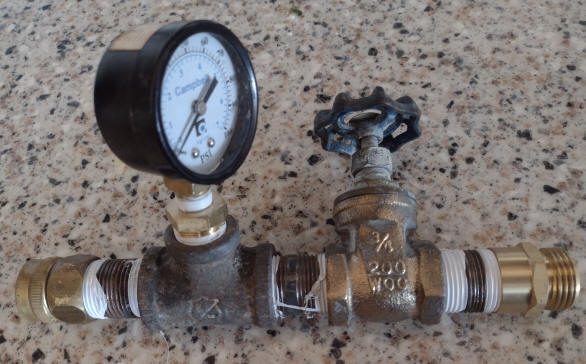

This worksheet is designed to develop a pressure-flow relationship for a water source. Data is collected with a simple homemade device using a valve and pressure gauge (below). Unit can be attached to a hose bib (open fully once it is attached). Flow is calculated and graphed.

Name:
Site (location):
Date:
Static Pressure (no flow)
Bucket Size (gallons)

Enter the seconds to fill the bucket and pressure. Enter up to 10 readings.

#	Seconds	Pressure
1
2
3
4
5
6
7
8
9
10

Comments: Enter comments relevant to the test such as general observations of the system condition, etc.
